Application: For use with armoured cables, secures armouring & provides electrical continuity between armour & gland entry component. Also provides a seal on the outer sheath of the cable thus ensuring mechanical strength and no damage to cable sheathing. With compression type sealing technique these are used for both indoor and outdoor in all climate conditions as it is weatherproof & waterproof.
Design Features: Compliant to BS 6121 -1 : 2005, 4 part armour lock with cone and lock ring provided for additional grip to the armour.
Ingress Protection: IP 66 Also available in CIEL (Cast Integral Earth Lug). For orders add ‘C’ to Prod. Code.

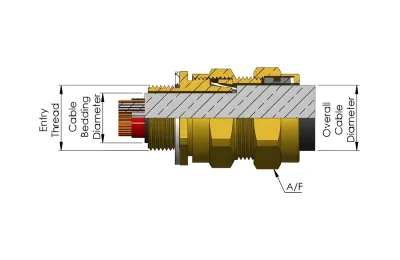

| Gland Code | Size | Entry Thread | Cable Bedding Diameter Max |
Overall Cable Diameter | A/F Max |
||
|---|---|---|---|---|---|---|---|
| Metric | NPT | Min | Max | ||||
| SRP-CW4PT-16L | 16L | M16x1.5 | 3/8" | 11.80 | 10.70 | 14.60 | 22.00 |
| SRP-CW4PT-20S | 20S | M20x1.5 | 1/2" | 11.80 | 10.70 | 14.60 | 22.00 |
| SRP-CW4PT-20L | 20L | M20x1.5 | 1/2" | 13.70 | 14.20 | 17.60 | 26.00 |
| SRP-CW4PT-25S | 25S | M25x1.5 | 3/4" | 18.80 | 17.20 | 20.40 | 32.00 |
| SRP-CW4PT-25L | 25L | M25x1.5 | 3/4" | 20.20 | 20.20 | 24.60 | 35.00 |
| SRP-CW4PT-32S | 32S | M32x1.5 | 1" | 25.00 | 24.20 | 30.10 | 42.00 |
| SRP-CW4PT-32L | 32L | M32x1.5 | 1" | 26.70 | 25.50 | 31.10 | 42.00 |
| SRP-CW4PT-40S | 40S | M40x1.5 | 1 1/4" | 31.50 | 30.80 | 38.40 | 50.00 |
| SRP-CW4PT-40L | 40L | M40x1.5 | 1 1/4" | 33.50 | 33.00 | 40.60 | 50.00 |
| SRP-CW4PT-50S | 50S | M50x1.5 | 1 1/2" | 39.60 | 36.00 | 43.60 | 56.50 |
| SRP-CW4PT-50L | 50L | M50x1.5 | 1 1/2" | 43.80 | 43.00 | 50.60 | 62.00 |
| SRP-CW4PT-63S | 63S | M63x1.5 | 2" | 50.00 | 48.50 | 56.00 | 72.00 |
| SRP-CW4PT-63L | 63L | M63x1.5 | 2" | 55.60 | 53.50 | 61.00 | 76.00 |
| SRP-CW4PT-75S | 75S | M75x1.5 | 2 1/2" | 63.00 | 60.00 | 67.00 | 83.00 |
| SRP-CW4PT-75L | 75L | M75x1.5 | 2 1/2" | 67.60 | 66.00 | 74.00 | 89.00 |
| SRP-CW4PT-90S | 90S | M90x1.5 | 3" | 76.00 | 74.00 | 86.00 | 101.00 |
| SRP-CW4PT-90L | 90L | M90x1.5 | 3" | 78.10 | 77.00 | 88.00 | 103.00 |
