BW Cable Glands (4 Part) are designed for secure cable termination in indoor electrical installations where armored cables require strong mechanical retention and proper earthing. These glands are widely used with steel wire armored (SWA) cables in electrical panels, control systems, switchgear, and industrial equipment.

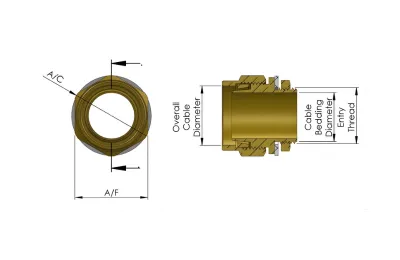

| Gland Code | Size | Entry Thread | Cable Bedding Diameter Max |
Overall Cable Diameter Max |
A/F Max |
A/C Max |
|
|---|---|---|---|---|---|---|---|
| Metric | NPT | ||||||
| SRP-BW4PT-16L | 16L | M16x1.5 | 3/8" | 11.80 | 16.30 | 22.00 | 24.00 |
| SRP-BW4PT-20S | 20S | M20x1.5 | 1/2" | 11.80 | 16.30 | 22.00 | 24.00 |
| SRP-BW4PT-20L | 20L | M20x1.5 | 1/2" | 14.10 | 19.20 | 24.00 | 26.50 |
| SRP-BW4PT-25S | 25S | M25x1.5 | 3/4" | 18.80 | 24.60 | 30.00 | 33.00 |
| SRP-BW4PT-25L | 25L | M25x1.5 | 3/4" | 20.20 | 25.80 | 32.00 | 35.50 |
| SRP-BW4PT-32S | 32S | M32x1.5 | 1" | 21.80 | 27.70 | 35.00 | 38.50 |
| SRP-BW4PT-32L | 32L | M32x1.5 | 1" | 26.70 | 33.60 | 40.50 | 43.50 |
| SRP-BW4PT-40S | 40S | M40x1.5 | 1 1/4" | 29.30 | 37.20 | 44.00 | 48.50 |
| SRP-BW4PT-40L | 40L | M40x1.5 | 1 1/4" | 33.20 | 40.00 | 47.00 | 52.00 |
| SRP-BW4PT-50S | 50S | M50x1.5 | 1 1/2" | 39.60 | 47.00 | 56.00 | 61.00 |
| SRP-BW4PT-50L | 50L | M50x1.5 | 1 1/2" | 43.80 | 52.80 | 62.00 | 68.50 |
| SRP-BW4PT-63S | 63S | M63x1.5 | 2" | 50.20 | 60.40 | 69.00 | 76.50 |
| SRP-BW4PT-63L | 63L | M63x1.5 | 2" | 55.60 | 64.80 | 74.00 | 82.50 |
| SRP-BW4PT-75S | 75S | M75x1.5 | 2 1/2" | 61.20 | 72.00 | 83.00 | 93.00 |
| SRP-BW4PT-75L | 75L | M75x1.5 | 2 1/2" | 67.20 | 78.00 | 87.00 | 97.00 |
| SRP-BW4PT-90L | 90L | M90x1.5 | 3" | 79.20 | 89.00 | 105.00 | 116.00 |
