Cable gland plugs, also known as blanking plugs or stopping plugs, are used to seal unused cable entry points in electrical enclosures, junction boxes, and cable glands. They help maintain the integrity of electrical systems by preventing the entry of dust, moisture, dirt, and other external contaminants.
Cable gland plugs are manufactured in various sizes, thread types, and designs to suit different applications. They are typically made from high-quality materials such as brass, stainless steel, and other corrosion-resistant metals to ensure durability in demanding industrial environments.

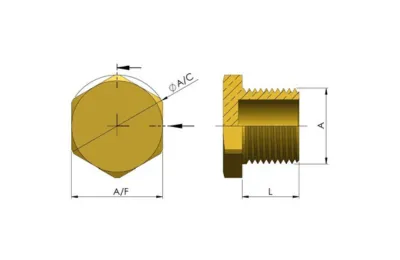

| Code | Size | Metric | |||
|---|---|---|---|---|---|
| A | L | A/F | A/C | ||
| SRP-HSP-16 | 16 | M16x1.5 | 15.0 | 19.0 | 22.0 |
| SRP-HSP-20 | 20 | M20x1.5 | 15.0 | 24.0 | 27.0 |
| SRP-HSP-25 | 25 | M25x1.5 | 15.0 | 30.0 | 34.0 |
| SRP-HSP-32 | 32 | M32x1.5 | 15.0 | 38.0 | 42.0 |
| SRP-HSP-40 | 40 | M40x1.5 | 15.0 | 45.0 | 50.0 |
| SRP-HSP-50 | 50 | M50x1.5 | 15.0 | 55.0 | 60.0 |
| SRP-HSP-63 | 63 | M63x1.5 | 15.0 | 68.0 | 75.0 |
| SRP-HSP-75 | 75 | M75x1.5 | 15.0 | 82.0 | 89.0 |
| SRP-HSP-90 | 90 | M90x1.5/2.0 | 20.0 | 98.0 | 108.0 |
| SRP-HSP-100 | 100 | M100x1.5/2.0 | 20.0 | 108.0 | 118.0 |
| Code | Size | NPT | |||
|---|---|---|---|---|---|
| A | L | A/F | A/C | ||
| SRP-HSP-0N | 3/8" | 3/8" | 15.0 | 19.0 | 22.0 |
| SRP-HSP-1N | 1/2" | 1/2" | 15.0 | 24.0 | 27.0 |
| SRP-HSP-2N | 3/4" | 3/4" | 15.0 | 30.0 | 34.0 |
| SRP-HSP-3N | 1" | 1" | 15.0 | 38.0 | 42.0 |
| SRP-HSP-4N | 1 1/4" | 1 1/4" | 15.0 | 45.0 | 50.0 |
| SRP-HSP-5N | 1 1/2" | 1 1/2" | 15.0 | 55.0 | 60.0 |
| SRP-HSP-6N | 2" | 2" | 15.0 | 68.0 | 75.0 |
| SRP-HSP-7N | 2 1/2" | 2 1/2" | 15.0 | 82.0 | 89.0 |
| SRP-HSP-8N | 3" | 3" | 20.0 | 98.0 | 108.0 |
